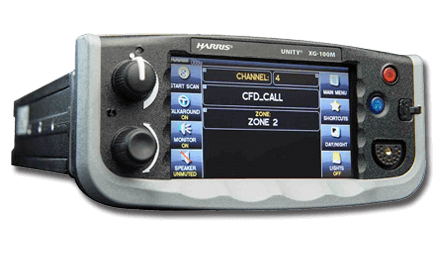

L3Harris XG-100M

L3Harris

XG-100M

The L3Harris Unity XG-100M radio delivers best-in-class audio, ease-of-use and interoperability demanded by today’s mission-critical operations.

This versatile mobile solution supports P25 and analog conventional communications across the VHF, UHF and 700/800 MHz bands, allowing First Responders to connect across multiple jurisdictions and agencies operating on multiple frequencies and systems.

The XG-100M is software-defined, offering a smooth migration path with support for wideband and narrowband channels and field upgrades to additional modes including P25 Phase 2 trunking.

Frequency Band:

Frequency Range:
VHF: 33-48, 136-174 MHz
UHF: 380-520
700/800: 762-870

Power Output:
VHF: 5-50 W
UHF: 5-50 W
700: 2-30 W
800: 2-35 W

Number of Channels/Groups/Zones:

Channel spacing:

Dimensions H x W x D
Radio Only (50 W): 2.0 x 6.9 x 9.7 in (50 x 175 x 247 mm)
Radio and CH-721 Control Unit (includes knobs): 2.4 x 6.9 x 12.8 in (60 x 175 x 325 mm)
CH-721 Control Unit (Remote): 2.4 x 7.0 x 4.0 in (60 x 175 x 100 mm)
Radio and CH-100 Control Unit (includes knobs): 3.3 x 7.0 x 11.6 in (84 x 178 x 295 mm)
CH-100 Control Unit (Remote): 3.3 x 7.0 x 2.8 in (84 x 178 x 71 mm)

Weight
Front Mount Radio with CH-100: 6.45 lb (2.93 kg)
Front Mount Radio with CH-721: 5.9 lb (2.68 kg)
CH-100 Control Unit (Remote Mount): 1.20 lb (0.54 kg)
CH-721 Control Unit (Remote Mount): 1.25 lb (0.57 kg)
Remote Mount Radio: 5.25 lb (2.38 kg)

Keypad / Keys

Display

Operating temperature
-22 to +140°F (-30 to 60°C)

Mil spec
810D, E, F, G

IP Standards
IP65

Harris XG 100M

Full-spectrum coverage in a single mobile

Made in the U.S.A., the XG-100M full-spectrum, multiband radio’s user-centric design delivers unprecedented interoperability, ease of use and advanced capabilities in a radio that users can depend on for years to come.
