L3Harris
FULL-SPECTRUM MULTIBAND
The Unity XG-100P full-spectrum multiband radio delivers unprecedented interoperability, ease of use, and advanced capabilities. By supporting both digital P25 secure and analog conventional communications across the VHF, UHF, and 700/800 MHz bands in a single radio, first responders can communicate across multiple jurisdictions and agencies operating on multiple frequencies and systems.
Frequency Band:
VHF, UHF, 700/800
Frequency Range:
VHF: 136 - 174 Mhz
UHF: 380 - 520 MHz
700/800: 762 - 870 MHz
Power Output:
VHF: 1-6 W
UHF: 1-5W
700/800: 0.5-3W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
10 Hours
Number of Channels/Groups/Zones:
20
Channel spacing:
Dimensions H x W x D (without standard battery)
6.68 x 2.78 x 1.96 in (169.7 x 70.1 x 49.9 mm)
Weight (without standard battery)
16.8 oz (476.3g)
Keypad / Keys
Backlight, 2 soft keys, 5-way navigation key, 4 x 3 keypad, home button
Display
Front Display: 176 x 200 pixels, 2.2 in. transflective LCD, 16-bit color with white LED backlight
Top Display: 128 x 32 pixels, 0.91 in. organic lightemitting diode (OLED)
Operating temperature
-4° F to +140° F (-20° C to +60° C)
Mil spec
810D, E, F, 810G
IP Standards

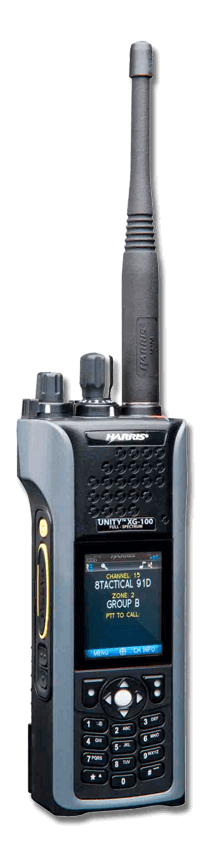

Made in the U.S.A., the Unity® XG-100P radio is a full-spectrum radio that operates on digital P25 systems as well as conventional analog systems. With access to VHF, UHF-L, UHF-H and 700/800 MHz, this radio scans across all bands, voice modes and encryption types at the same time—delivering end-to-end encrypted digital voice communications. The XG-100P is also a P25 Phase 2 capable radio with unique features such as situational awareness.
Talk to anyone, anywhere—no matter the frequency
The XG-100P is a full-spectrum, multiband portable radio that delivers unprecedented interoperability, ease of use, and advanced capabilities that users can depend on well into the future.
For more information on accessories, please Contact Us
