L3Harris

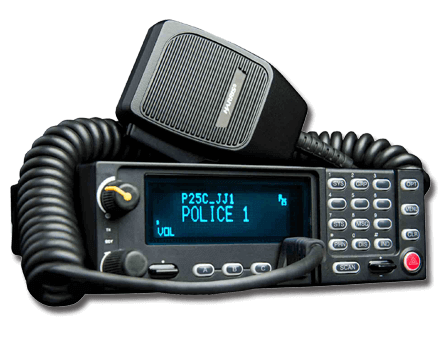

Designed for mission-critical communications in challenging environments, the L3Harris XG-75M delivers tough, reliable performance and exceptionally clear audio quality.
Providing secure voice and data through end-to-end digital encryption, this mobile radio supports wideband and narrowband communications. It is P25 Phase 2 capable, with a software-defined architecture allowing field updates to new capabilities.
Frequency Band:
VHF, UHF, 700/800,
Frequency Range:
VHF: 136-174 MHz
UHF: 378-430, 440-512 MHz
700/800: 764-776, 794-806, 806-825, 851-869 MHz
Power Output:
VHF: 50-110W, 8-50 W
UHF: 8-50 W
700/800: 30 W
Number of Channels/Groups/Zones:
Channel spacing:
12.5, 25
Dimensions H x W x D
VHF (110W)
Radio (only): 2.4 x 6.9 x 11.0 in (61 x 175 x 279 mm)
Radio and Control Unit (with knobs): 2.4 x 6.9 x 12.3 in (60 x 175 x 311 mm)
Control Unit (remote):2.4 x 7.0 x 4.0 in (60 x 175 x 100 mm)
Weight
VHF (110W)
Remote Mount: 7.55 lb (3.42 kg)
Front Mount: 5.9 lb (2.68 kg)
Remote Mount (transceiver only): 5.25 lb (2.38 kg)
Control Head (CH-721): 1.25 lb (0.57 kg)
Keypad / Keys
Display
Operating temperature
-22 to +140°F (-30 to 60°C)
Mil spec
810D, E, F, G
IP Standards
IP65 (Control Unit)
Tough radio, delivering secure communications
Designed to meet the critical demands of its users, this multimode mobile combines end-to-end encrypted digital voice and data with innovative features such as Control and Status Services.
For more information on accessories, please Contact Us
